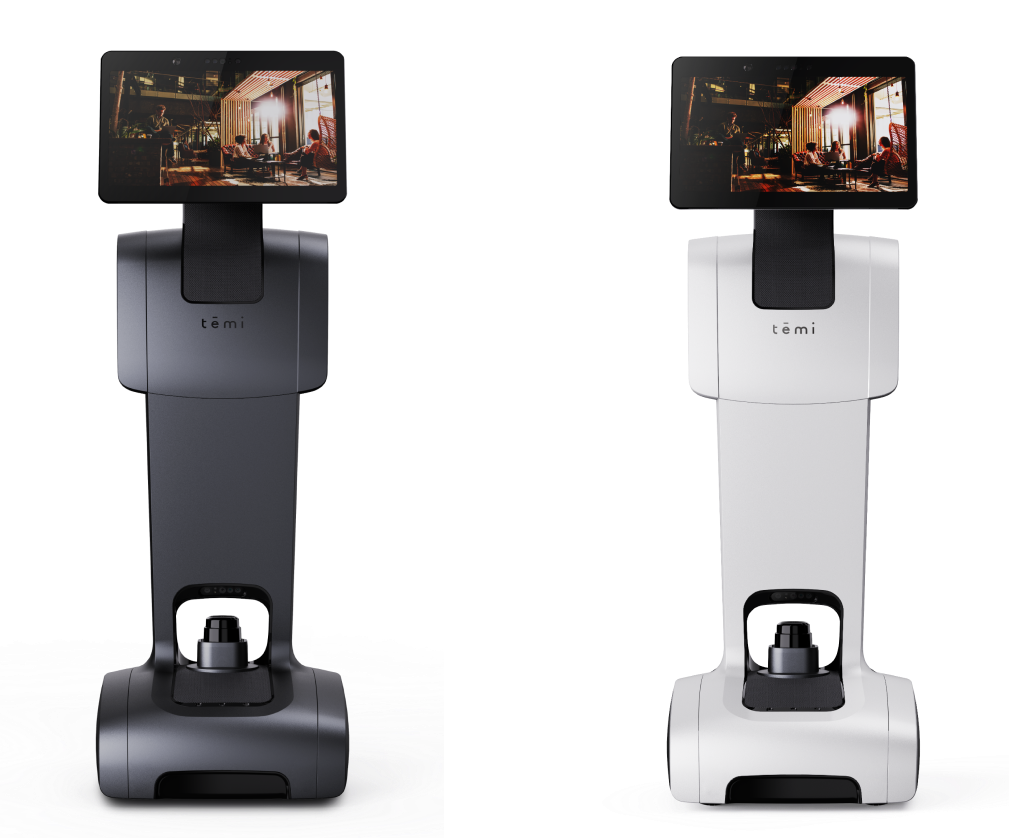

temi V3

temiV3

TEMI SPECS

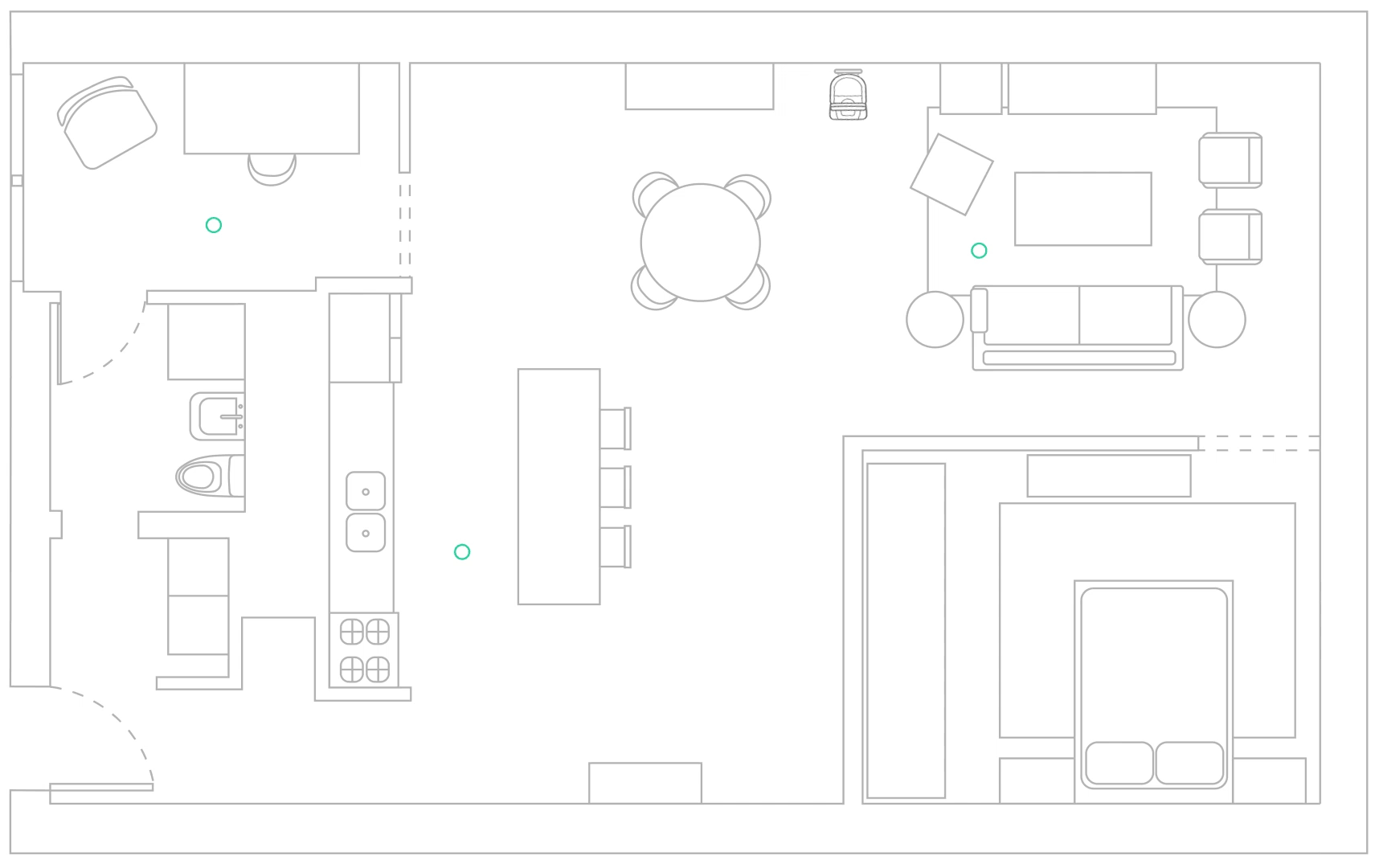

ROBOX™ NAVGATION SYSTEM

Temi’s human-robot interaction and autonomous navigation

  • 2D Mapping
  • 3D Localization
  • Navigation
  • User detection and tracking
  • Obstacle avoidance
  • Path planning

CPU

  • ARM Hexa Core
  • LINUX OS

SENSORS

  • 360 degrees LIDAR
  • 2 depth cameras
  • RGB camera
  • IMU sensor
  • 6 Time of Flight linear sensors
  • Real-time sensor fusion and data analysis ensures safe
  • fully-autonomous navigation

robox

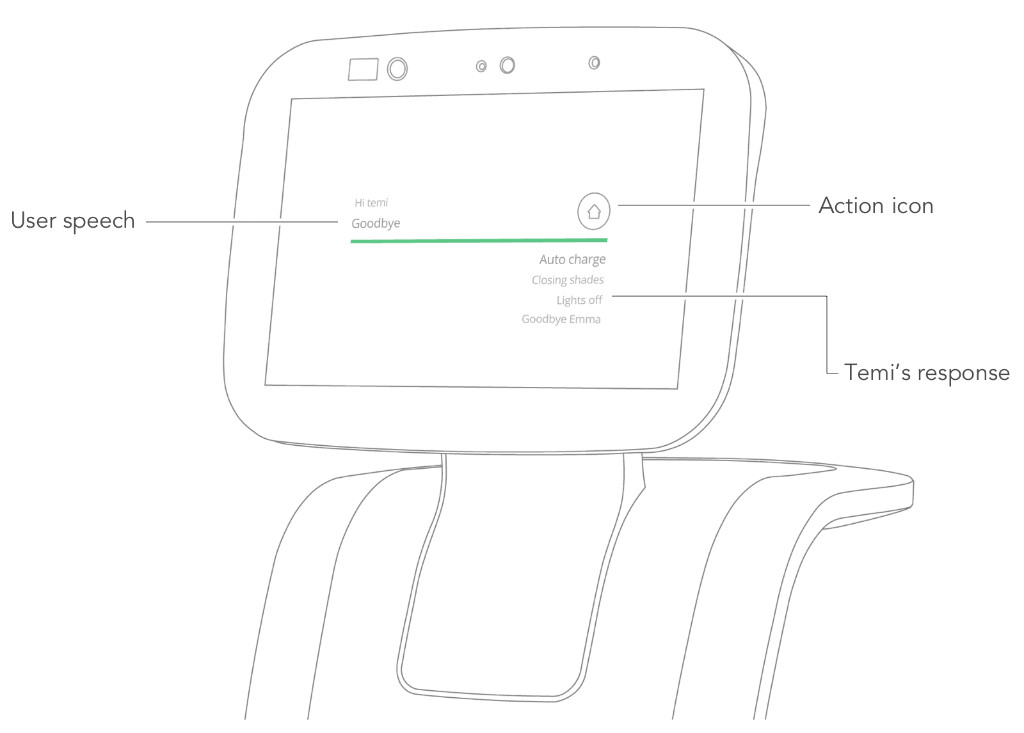

TemiOS

TEMI OS

Super intuitive operating system that comes, hears, speaks, sees and understands you, and is always learning how to serve you better

VOICE INTERACTION

temi hears, identifies, understands and responds to the user’s voice using Auto Speech Recognition (ASR) and far field voice technology, natural language processing (NLP), speech-to-text and text-to-speech (TTS) engines

USER INTERFACE

temi’s designed display enhances your experience with visuals that invite you to speak, hear and see what you want – creating the ultimate human-robot interaction

AI

temi integrates the best AI engines together to connect you to your favorite services. It’s navigation system self-learns it’s surroundings and understands where temi is, what it is seeing and where it is going.

Open to 3rd party apps

SDK Available

SECURITY
  • Top security measures and protocols.
  • Protected by Firedome IOT security.

CONNECTIVITY

WIFI5
  • 802.11b/g/n/ac with both 2.4G/5G
BLUETOOTH

V5.0 BLE compatible Master and slave modes

USB
  • 1 USB 3.0 port TYPE-C, 1 USB 2.0 port TYPE-A
  • Supports 4G USB dongle
  • Supports external USB camera
  • Supports common USB devices
temi connectivity
temi Display

DISPLAY

13.3” (H293.76 / V 165.24) HD LCD SCREEN

Capacitive multi-touch for intuitive interface. (1920X1080) IPS LCD 16M colors Touch Capacity Display Pixel density: 224 (ppi)

340 cd/m2 max brightness (typical)

Fingerprint-resistant coating

MICS

MICROPHONE ARRAY
  • Omni-directional digital mics
  • Real-time localization
  • Beam forming
  • Acoustic echo cancellation
  • Environment noise reduction
temi Mic
temi Screentilt

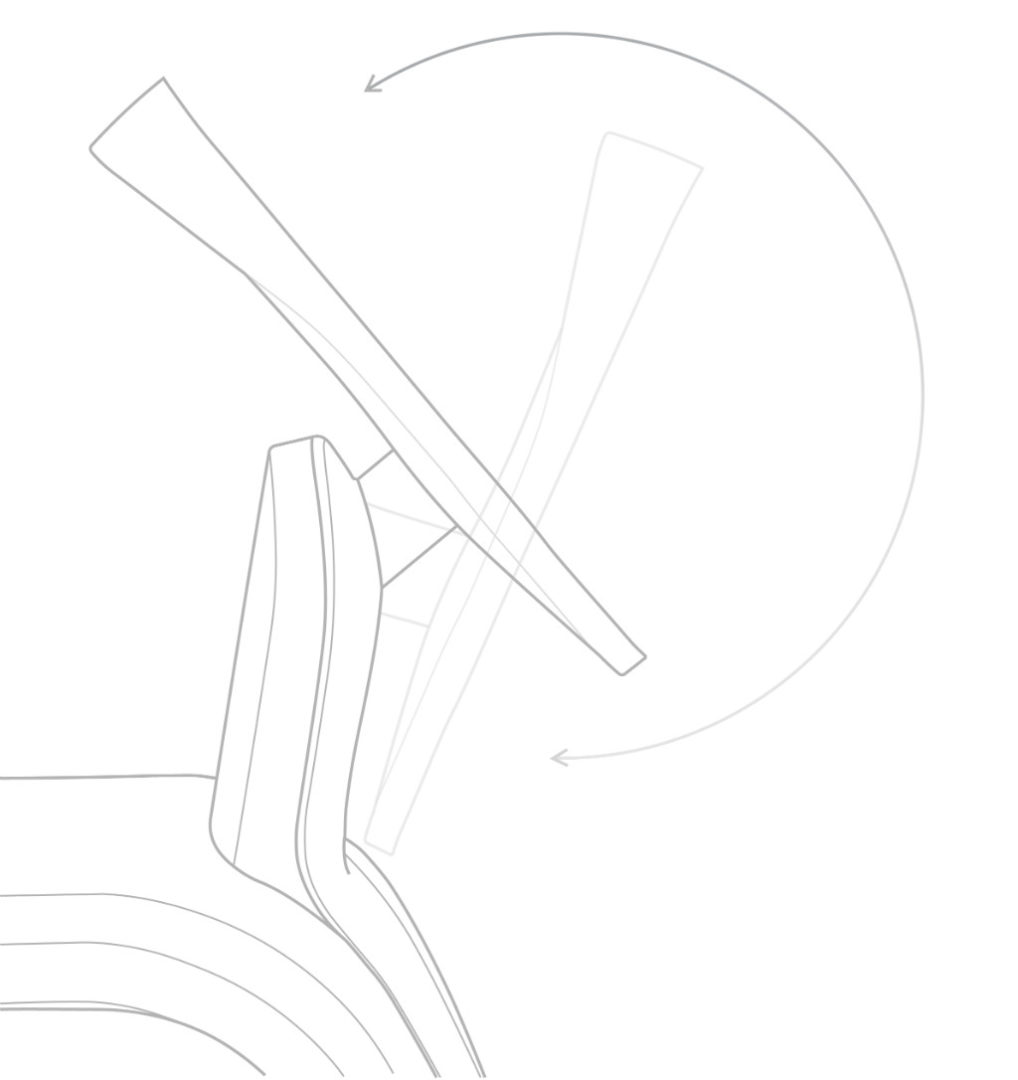

SCREEN TILT

Autonomous face tracking screen tilt

Brushless DC motor with planetary gear for high accuracy and quiet operation

Motion range – 15°~+55°

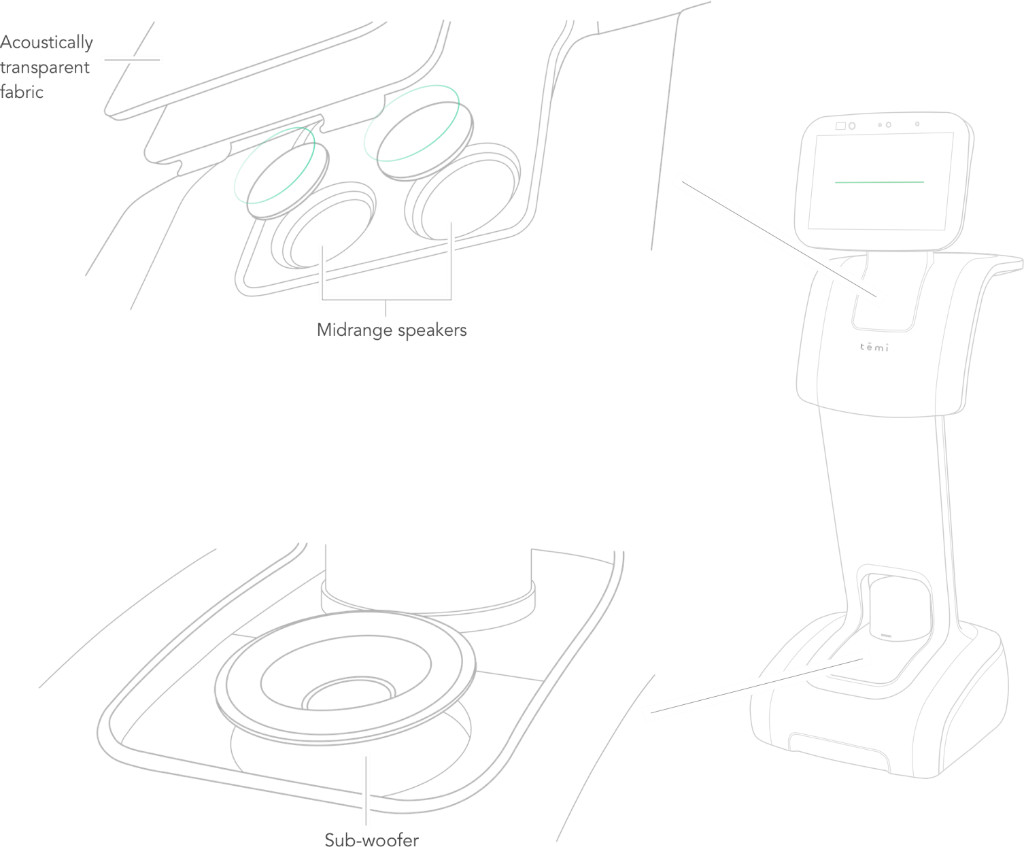

AUDIO

  • 20W Audio
  • High fidelity equalizer
  • One sub-woofer
  • Two midrange speakers
  • Two tweeters
  • Passive radiators
  • Acoustically transparent fabric
temi Audio
temi cameras

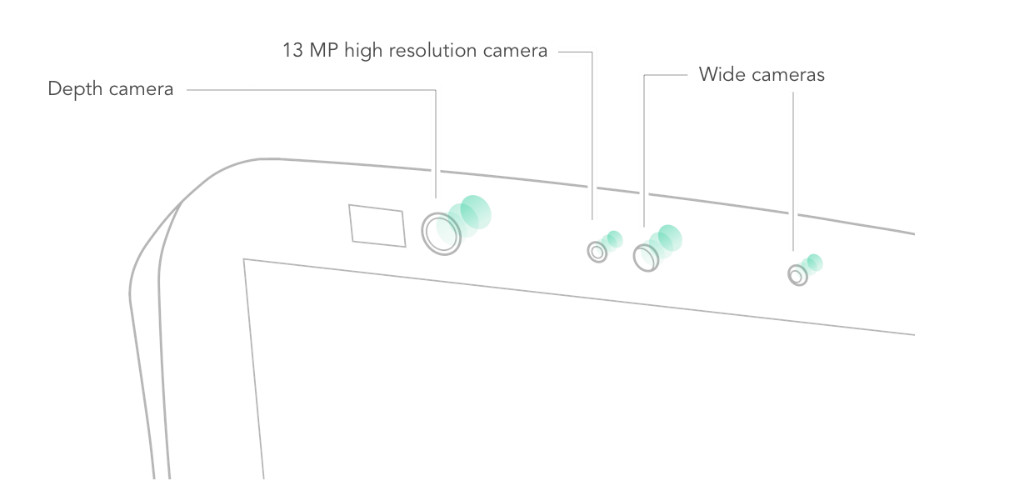

CAMERAS

13 MP HIGH RESOLUTION CAMERA
  • Autofocus
  • 1080p@30FPS
  • FOV 120 Degrees
  • digital zoom
WIDE CAMERA
  • 13MP wide camera for remote navigation
  • FOV 95 Degrees, 1080p@30FPS
TOF DEPTH CAMERA
  • 30 FPS
  • Up to 5 meters
  • 90° FOV

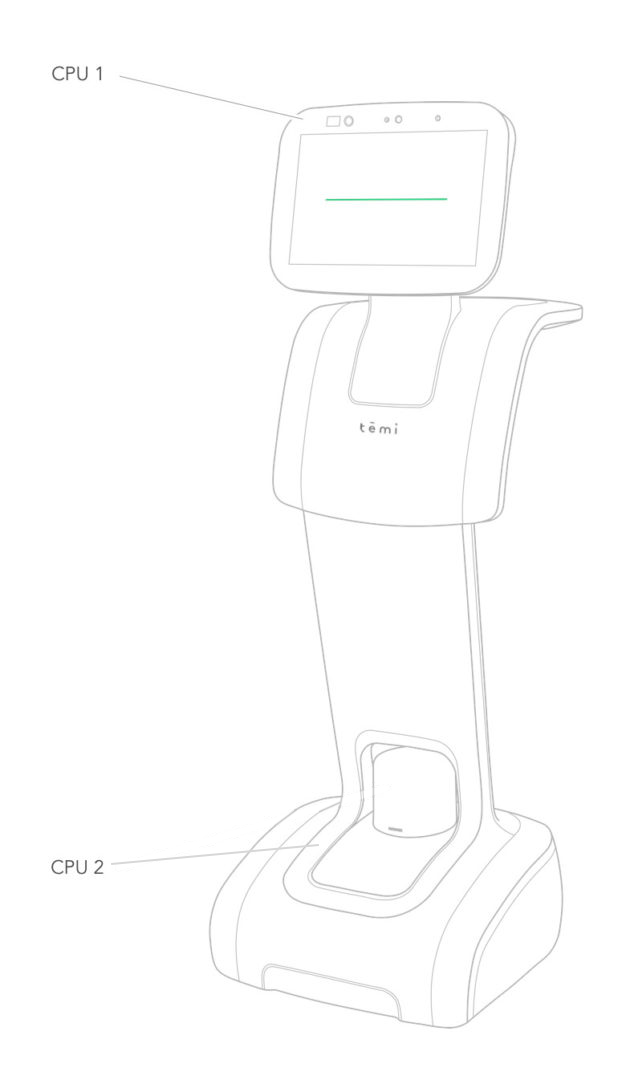

CPU

CPU 1

ARM Quad core

OPERATION SYSTEM

Human interaction computer based on Android architecture with proprietary launcher and User Interface

CPU 2
  • ARM Hexa core
  • LINUX OS

Main navigation computer based on ARM architecture, enabling high performance with minimal power consumption

temi CPU
temi power

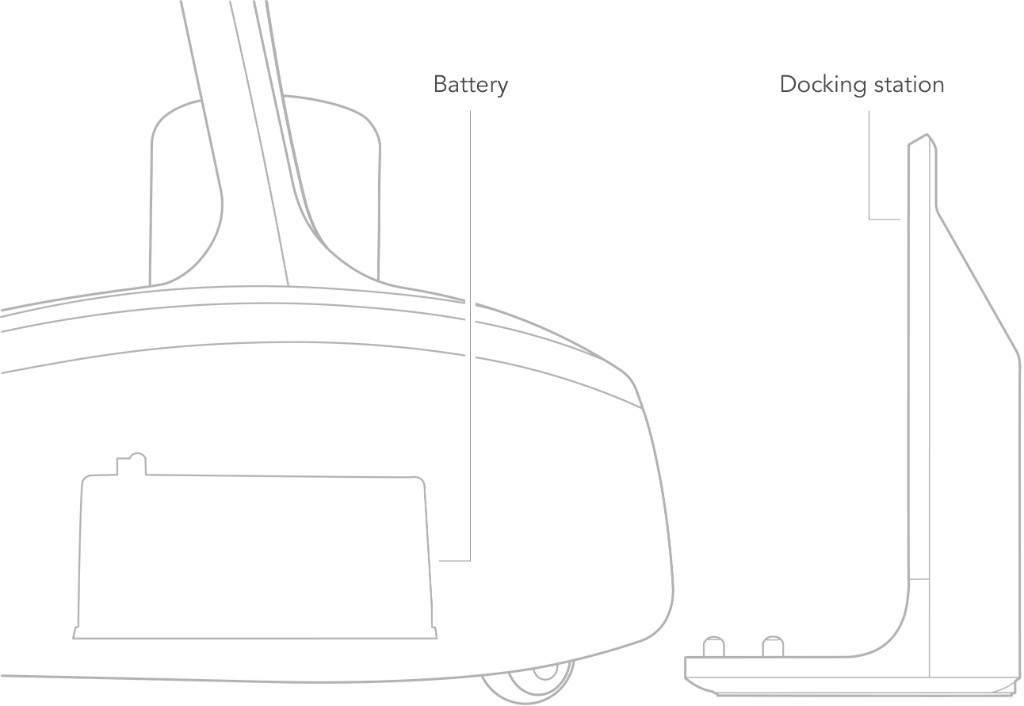

POWER

  • Up to 8 Hours of operation per charge
  • Autonomous charging- 220V/110V
  • High performance docking station
  • Lithium-Ion cells

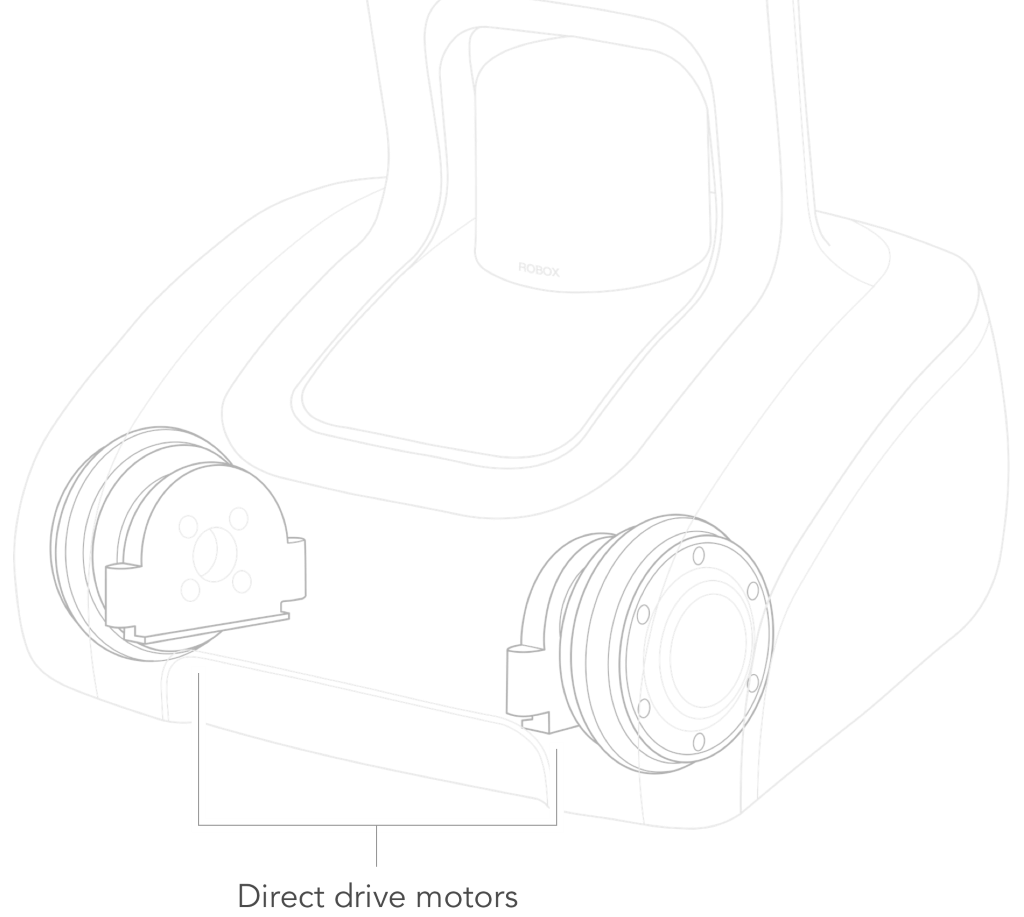

MOBILITY

  • Two independent 50 W direct drive Brushless DC motors
  • High resolution magnetic encoders that produce a smooth, accurate ride
MANEUVERABILITY

Zero turn radius

SPEED

Up to 1 meter per second

Custom tires for optimal grip, stability and vibrations management

temi specswheels
temi tray

TRAY

30x25cm Holds up to 3Kg 1×0.8ft Holds up to 6.6Lb

TEMI CENTER

  • js slider
  •  carousel js
  • slideshow js
  • slideshow js
  • slideshow js
  • slideshow js
remote temi store

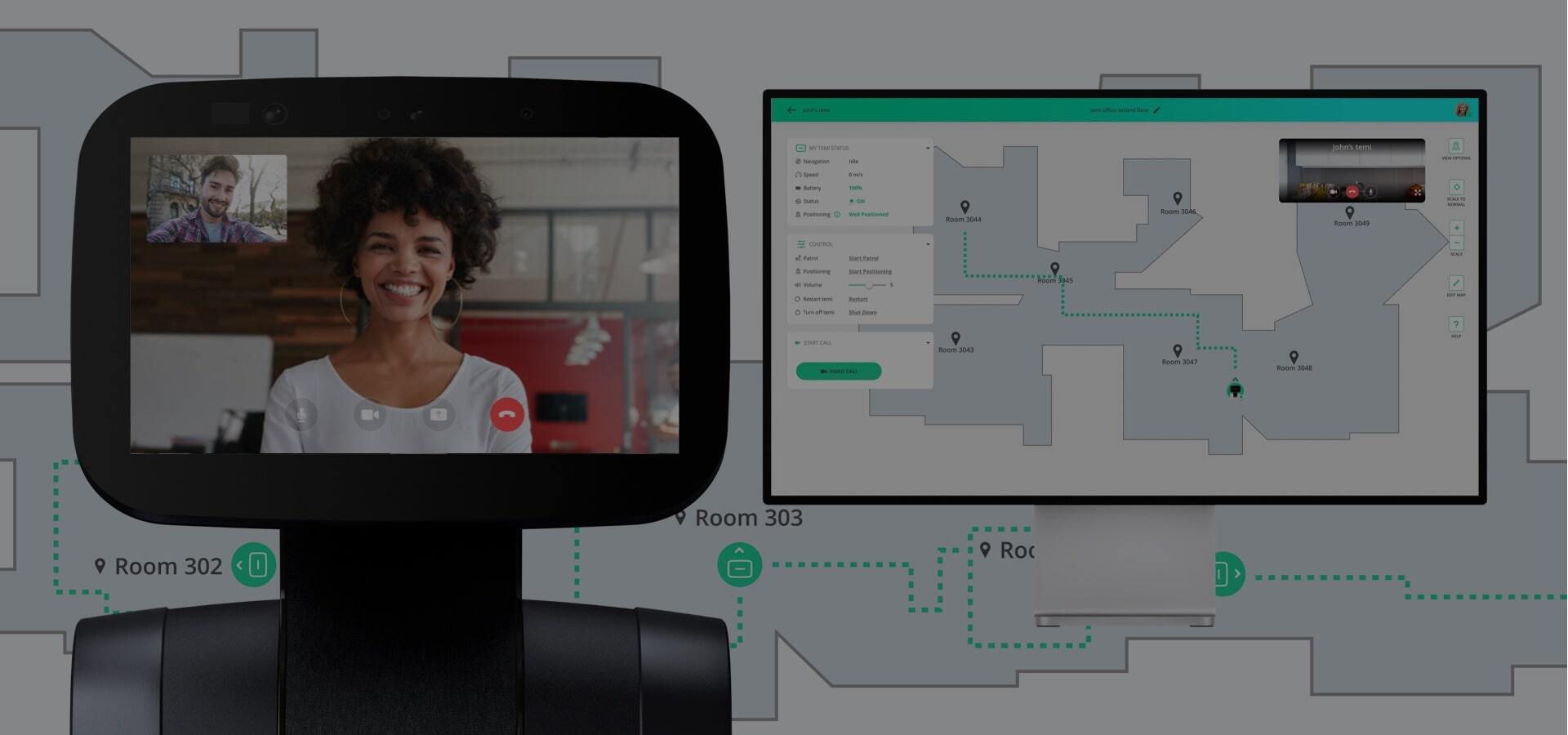

Control temi remotely

Send temi to saved locations
Drive temi anywhere on the map
Telepresence - Now on the web

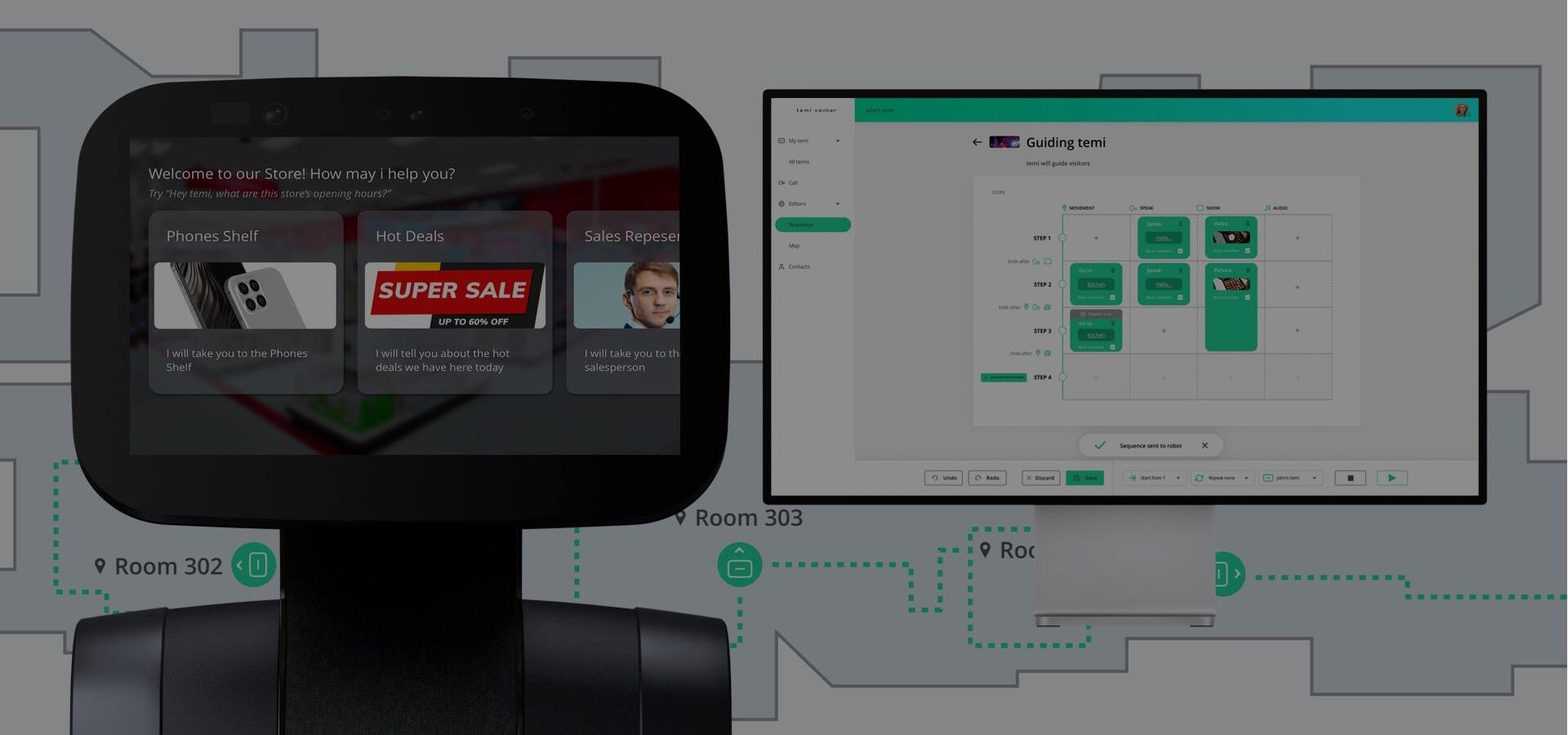

Sequence temi store
Sequences

Make temi do what you want.
Go to locations, show videos,
play music and speak, all automated.

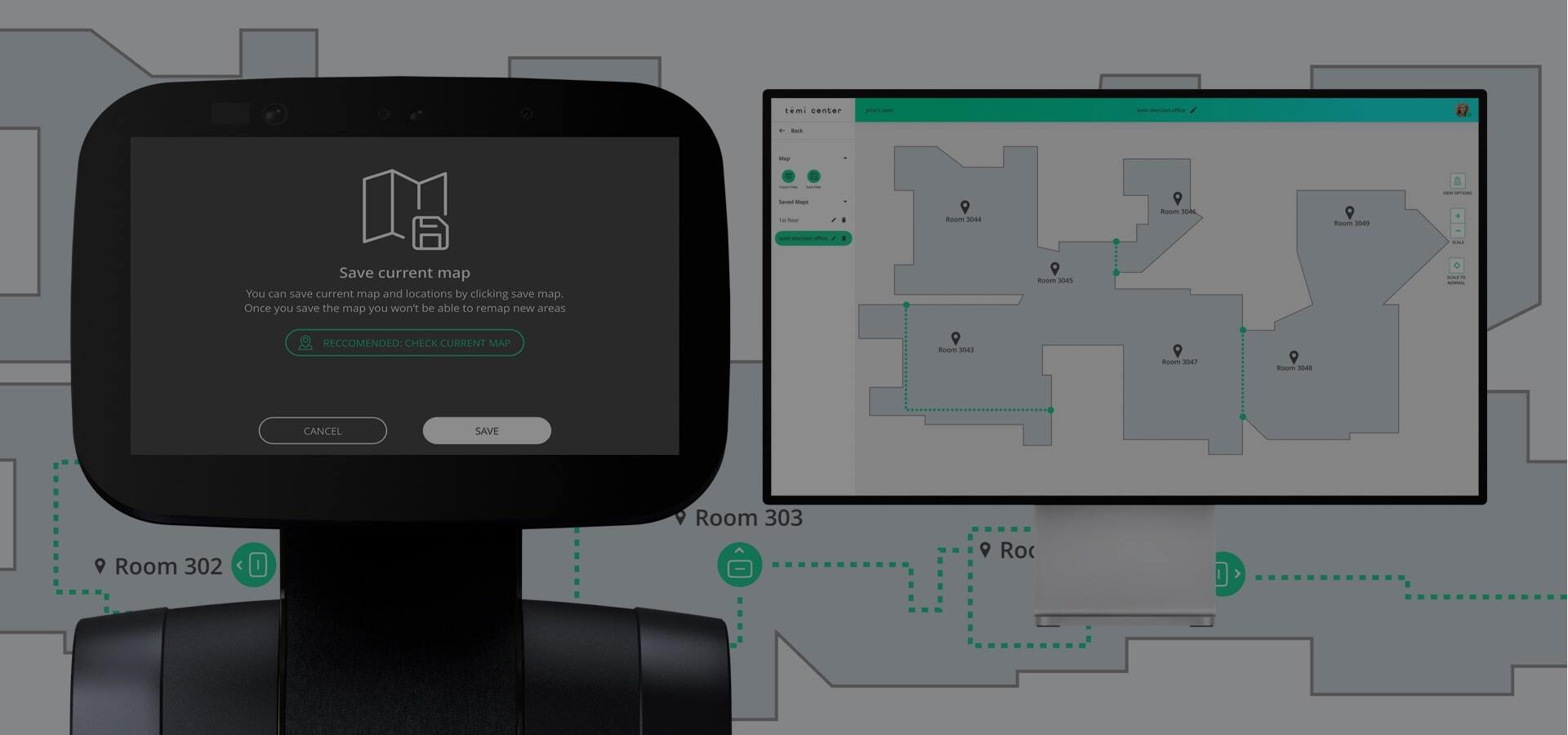

map temi store
Map Configuration

Add/Edit locations and their paths
Create Virtual Walls
Save/Import/Export your map

Greet temi store

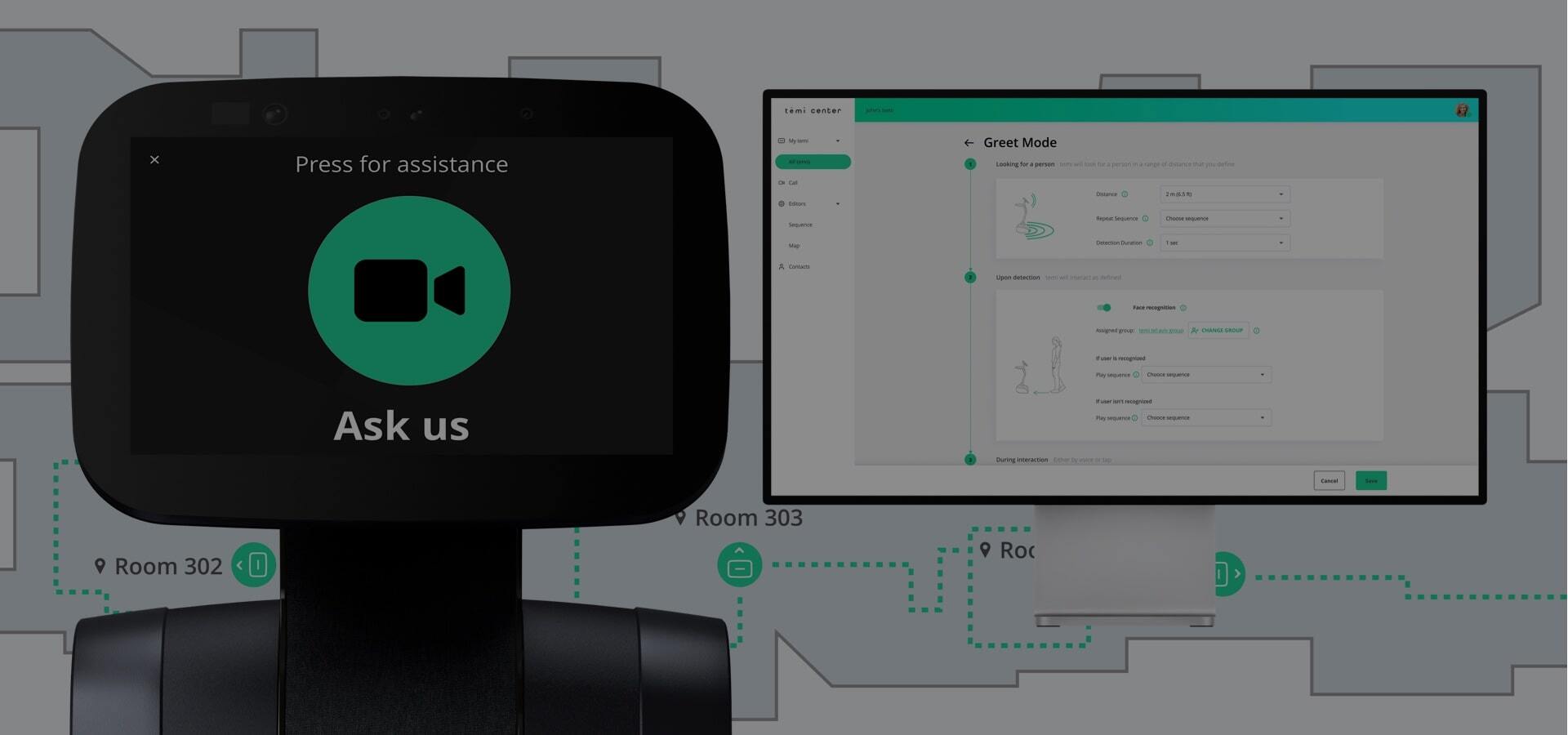

Greet Mode

Define temi’s human-detection mode
Personalize temi’s behaviour when greeting
Control temi’s movement when interacting

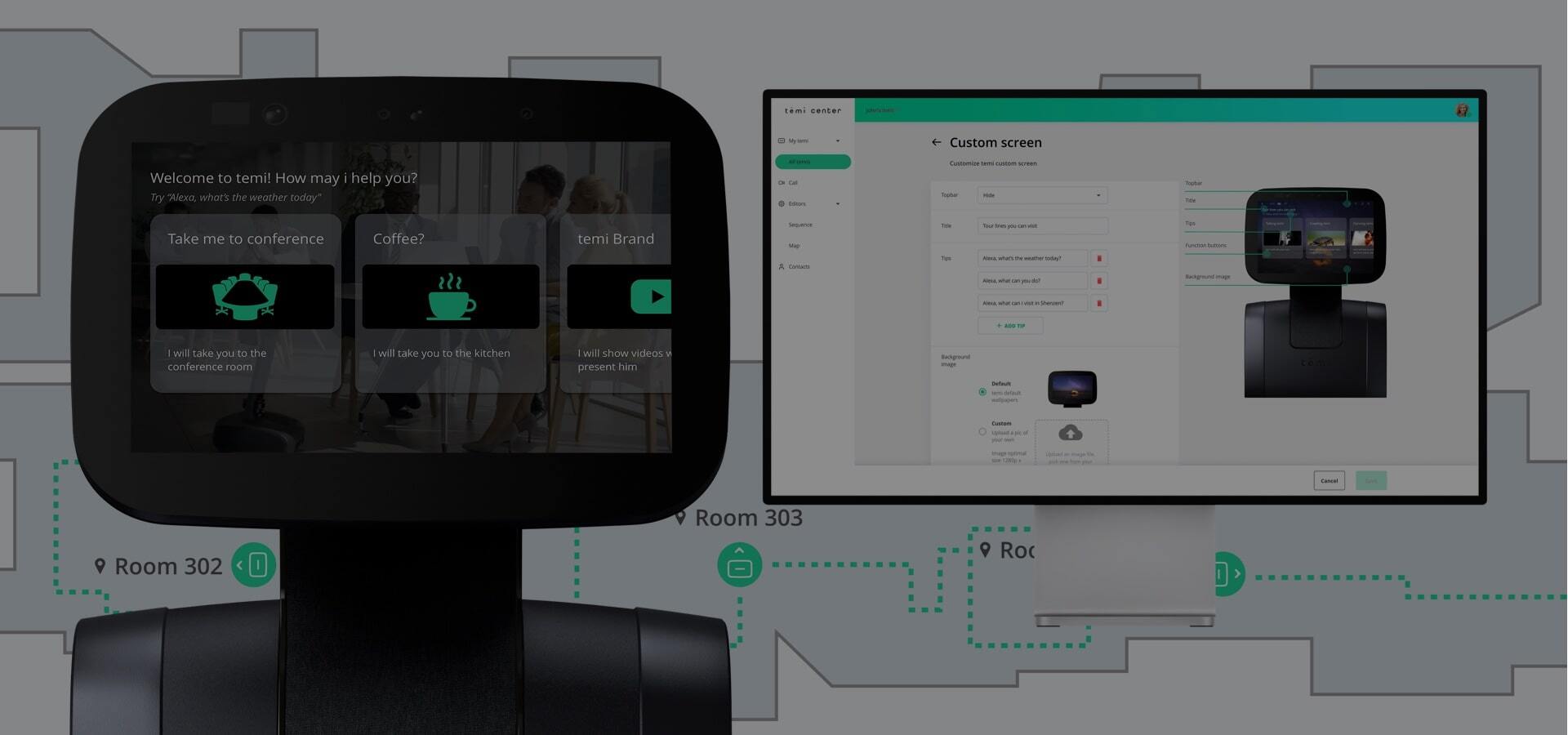

home temi store
Home Screen

Change your wallpaper
Toggle between display options
Create your own custom screen

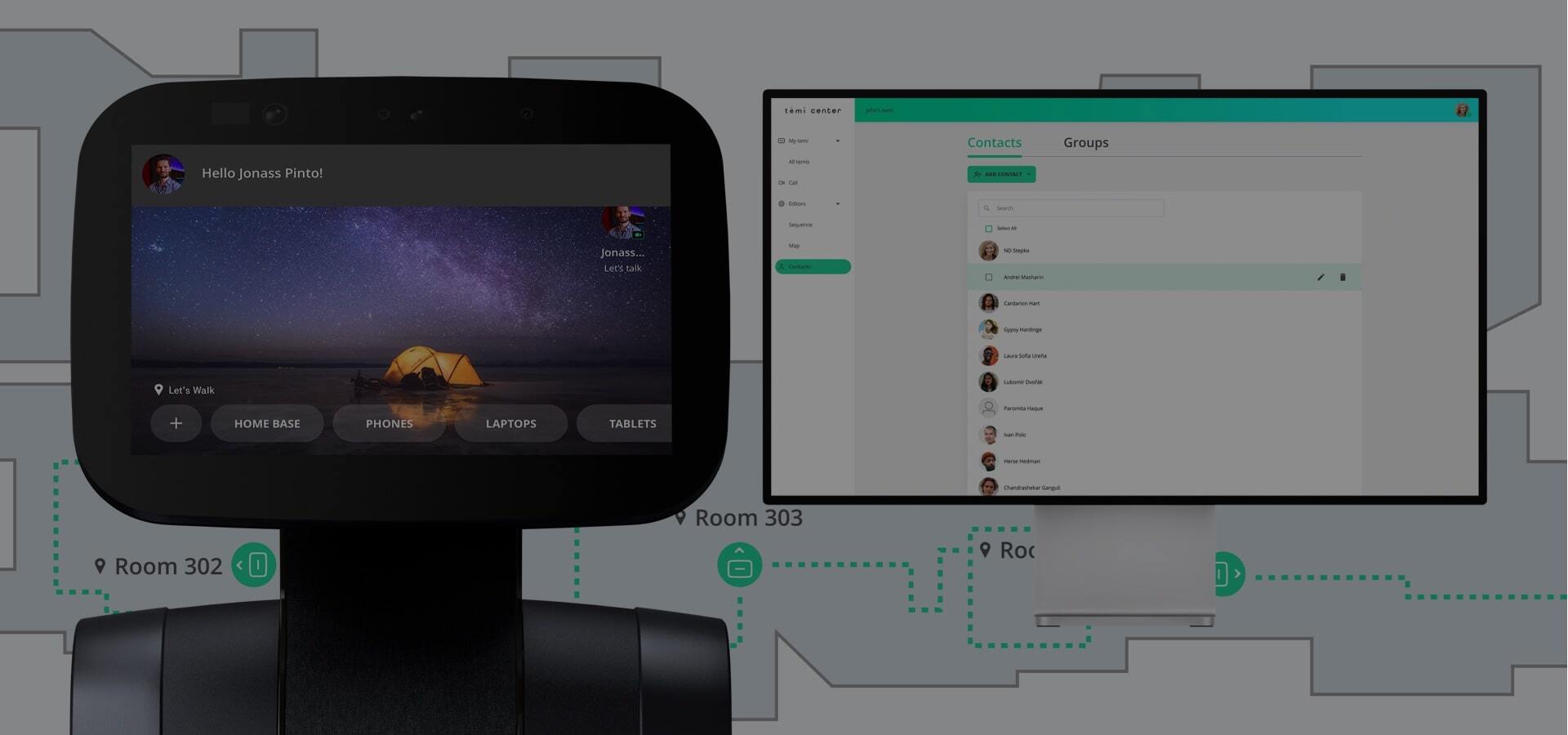

contact temi store
Contacts

Generate groups of contacts for your temi
Save and edit Face Recognition features
Personalize contacts for your temi

What temi can do ?

Education

The world is running full speed into the digital era. The knowledge of AI technology is totally a huge asset for future development. Thus, many educational institutes now put temi into one of the learning resources and tools.

Healthcare

temi has been brought to alleviate the damage of any contagious diseases with functions that allows contactless communication, entertainment, real-time monitoring, etc.It has been successfully become an assistant for our frontline heroes nowadays.

Retail

Under high competitive level of business, each business try so hard to make themselves outstanding. Robot trends are now on spotlight. Many retail stores are now using temi as public relation tools.

Hospitality

Hospitality sector has always been faced with high cost of human resources. For long term investment, temi robot help business reduce the cost, and still providing service excellence with the any possible multi talents.

At Home

With real time chatting, walking, and video anywhere in the world, temi connects people with the function so-called telepresence as if you are right at home.

etc.

With our software developer, temi can be developed to provide our customers borderless possibilities.
